Lead shielding and screens

Complete solutions for blocking ionising radiation, from certified glass to high-density lead sheet.

Certified Materials

Control and visual contact

In radiological diagnostics, visual contact with the patient is critical to both safety and precision. Our protective lead glass allows uninterrupted observation while blocking harmful radiation completely.

All glass is supplied cut to precise dimensions, ready for installation in our purpose-designed frames (steel or timber), which are themselves lead-lined to prevent radiation "leaking" at the joints.

Key areas of application:

  • X-ray and CT rooms
  • Angiography suites and PET centres
  • Mammography and dentistry
  • Materials testing laboratories

See also:Healthcare buildingsPRIMAXAutomatic doors

Range

Range

Protective lead glass

Polished panes supplied with certificates of their lead equivalence. Uninterrupted visual supervision with ionising radiation blocked completely.

  • Lead equivalence (Pb)2.1 mm and 2.6 mm — standard dimensions 1200 × 1000 mm.
  • Glass thickness7.0–8.5 mm (2.1 mm Pb) 8.5–10.0 mm (2.6 mm Pb).

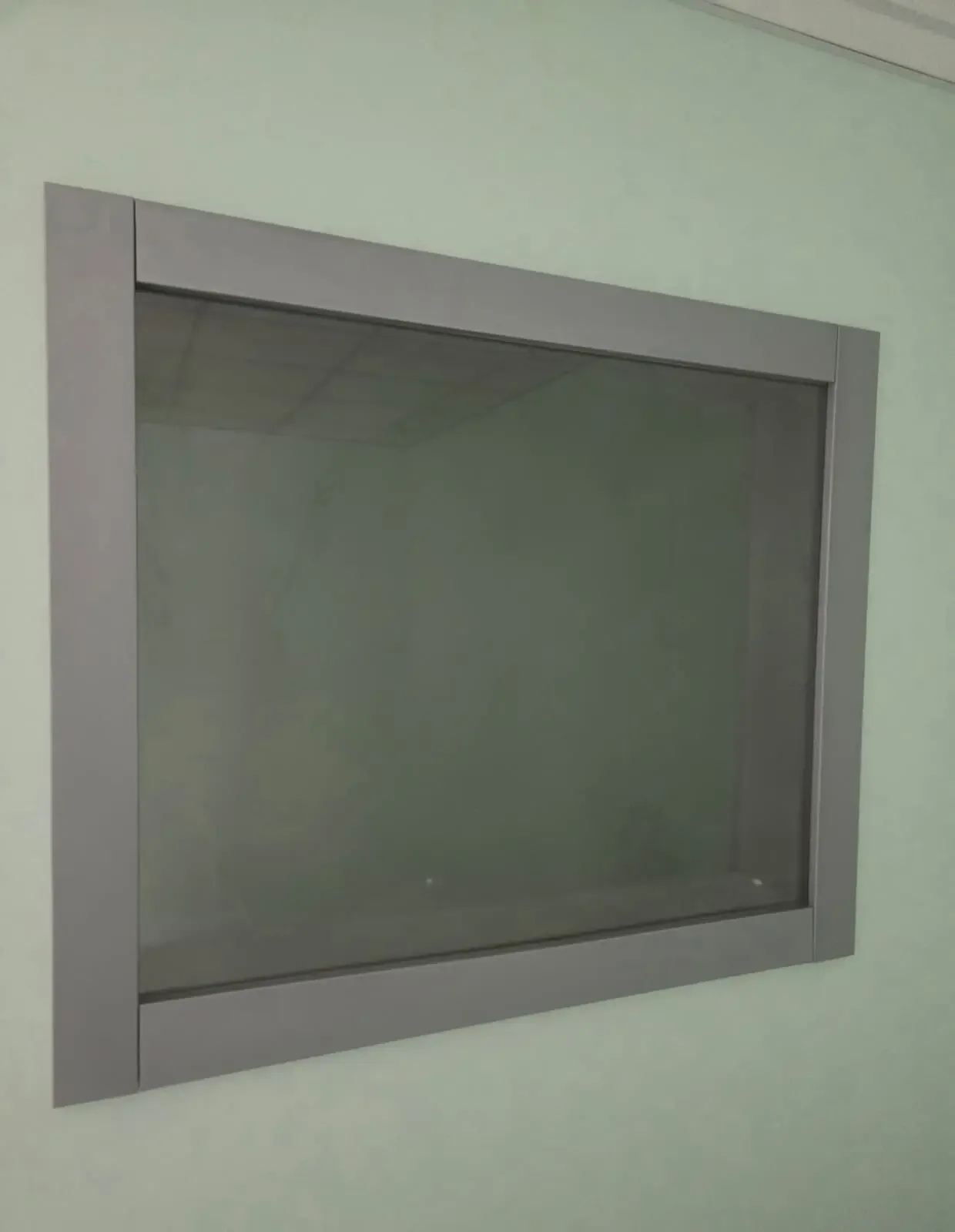

Protective lead glass in a grey metal frame set into a wall

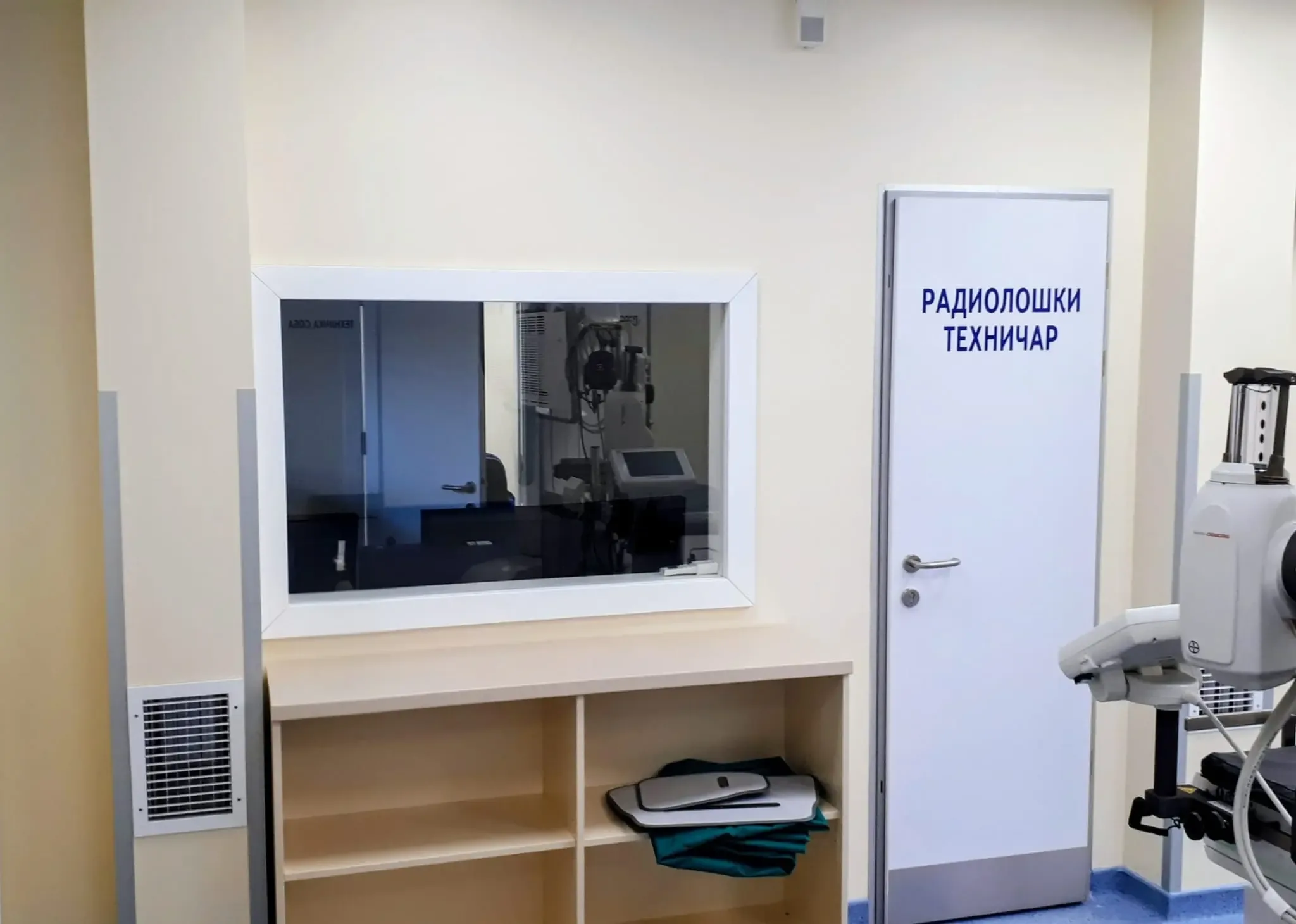

A control area with protective lead glass onto the X-ray room and the radiographer's door
An X-ray room with protective lead glass set into the wall and a hermetic sliding door

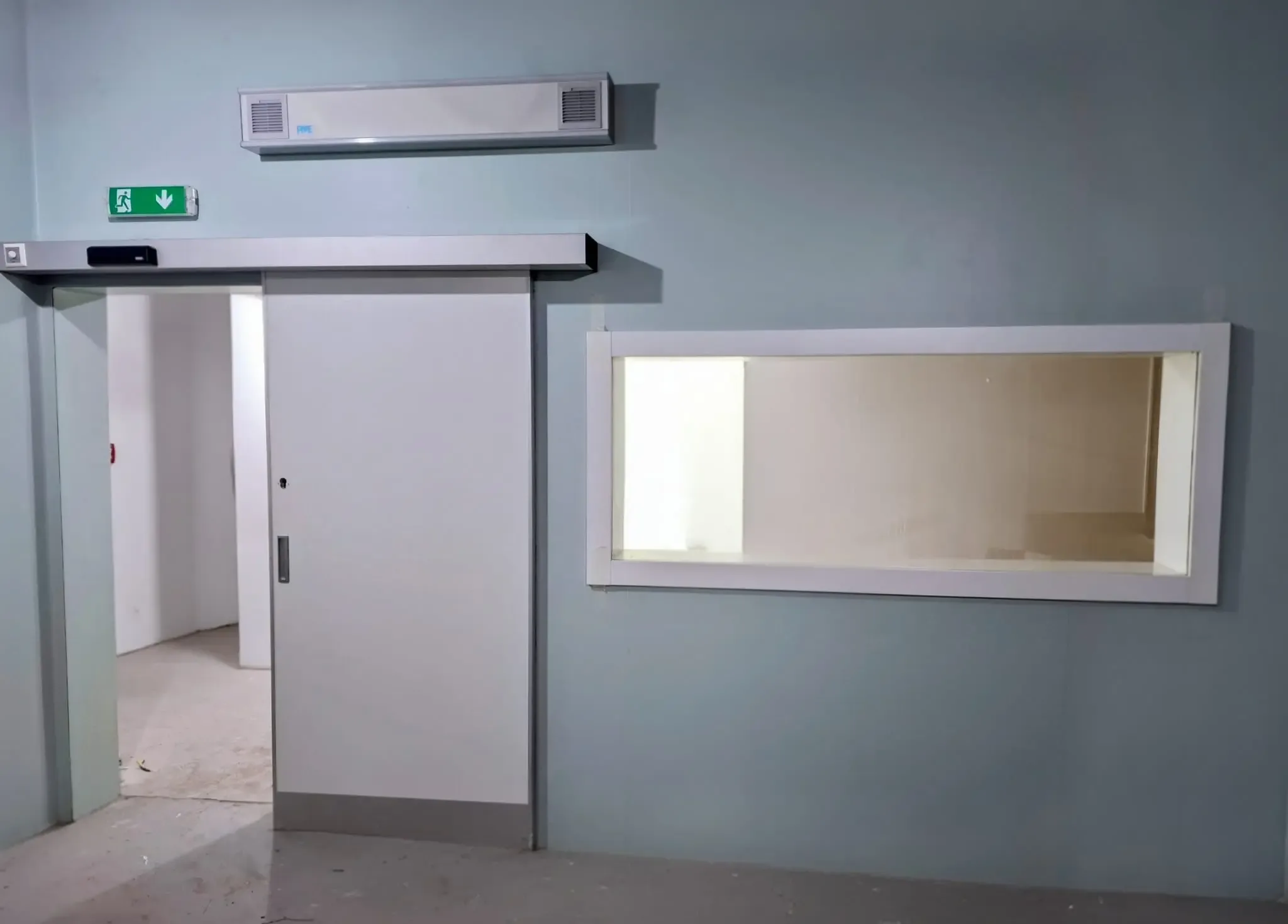

Large-format protective lead glass in a white frame, beside a powered automatic door

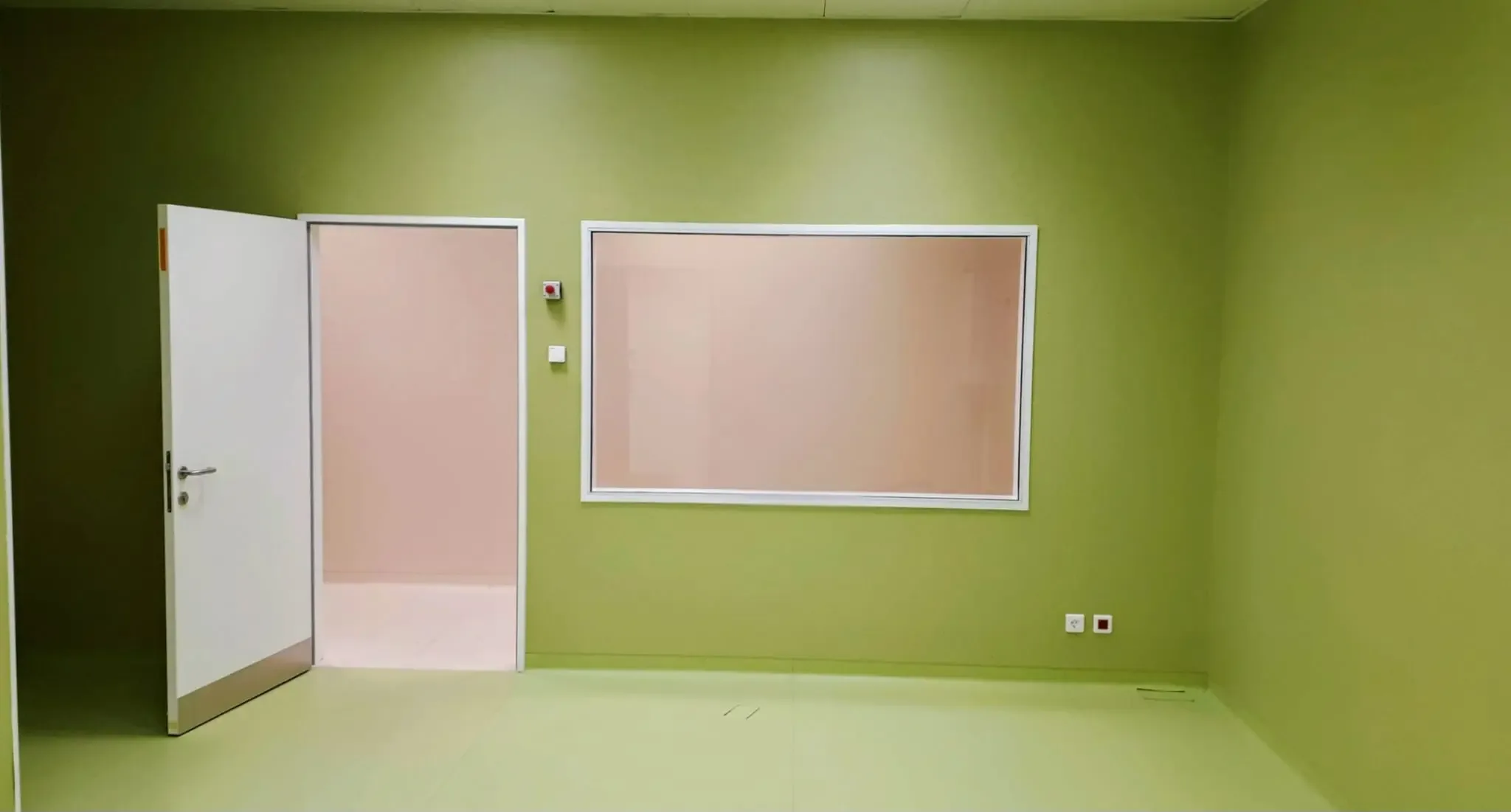

A room with green walls, an open door and protective lead glass in a white frame

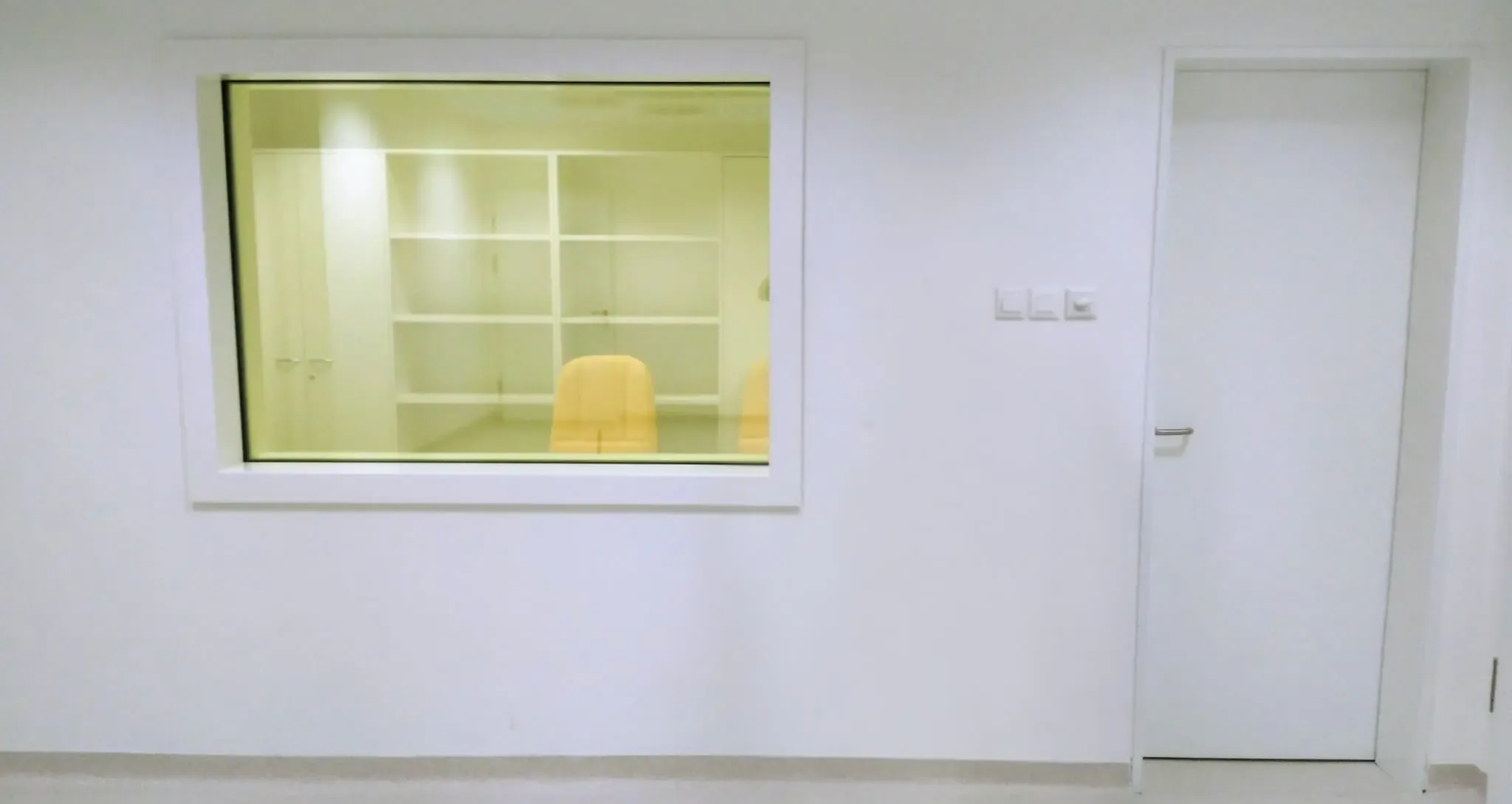

Protective lead glass in a white frame in a partition wall, beside a door

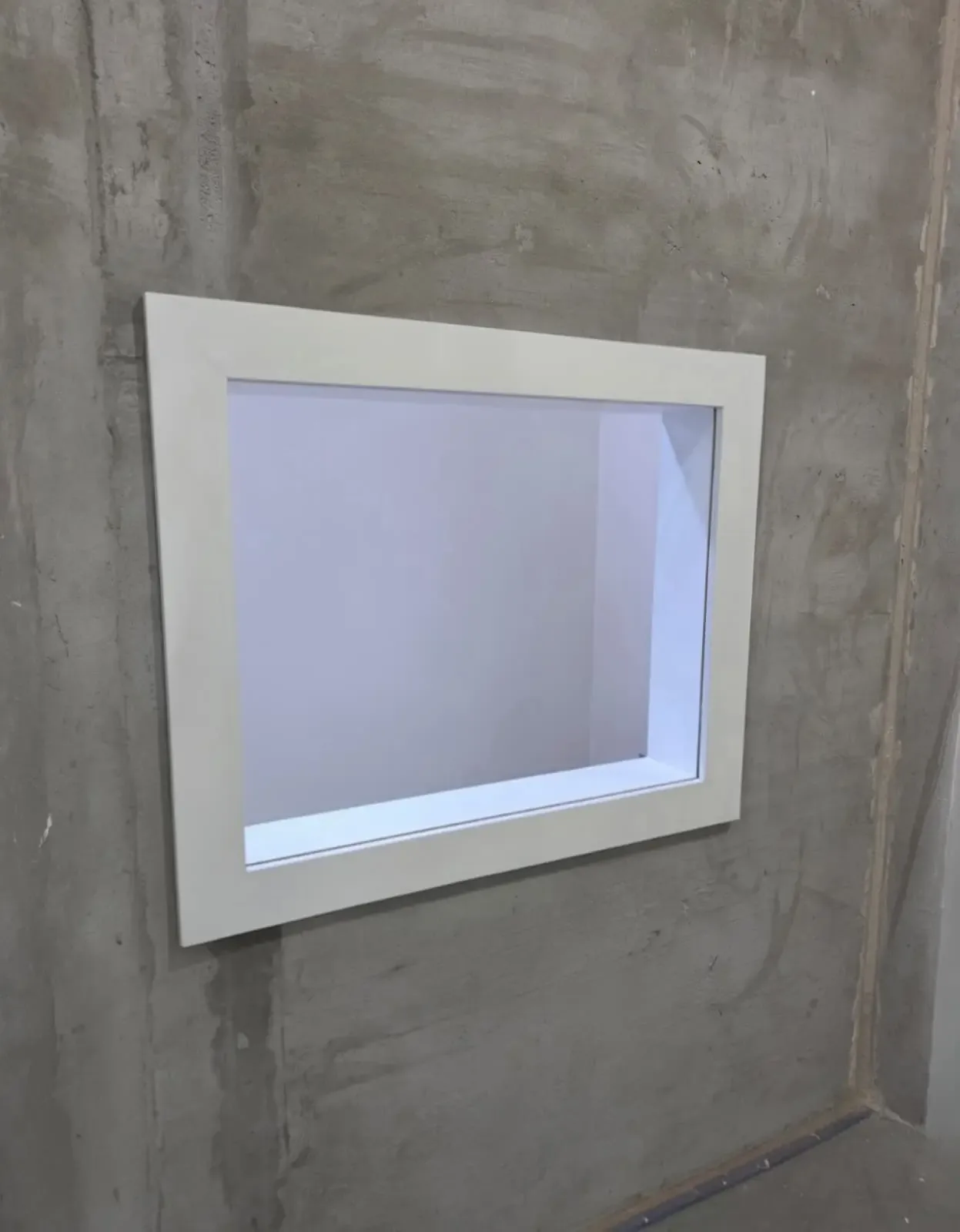

Protective lead glass in a white frame set into a concrete wall during construction

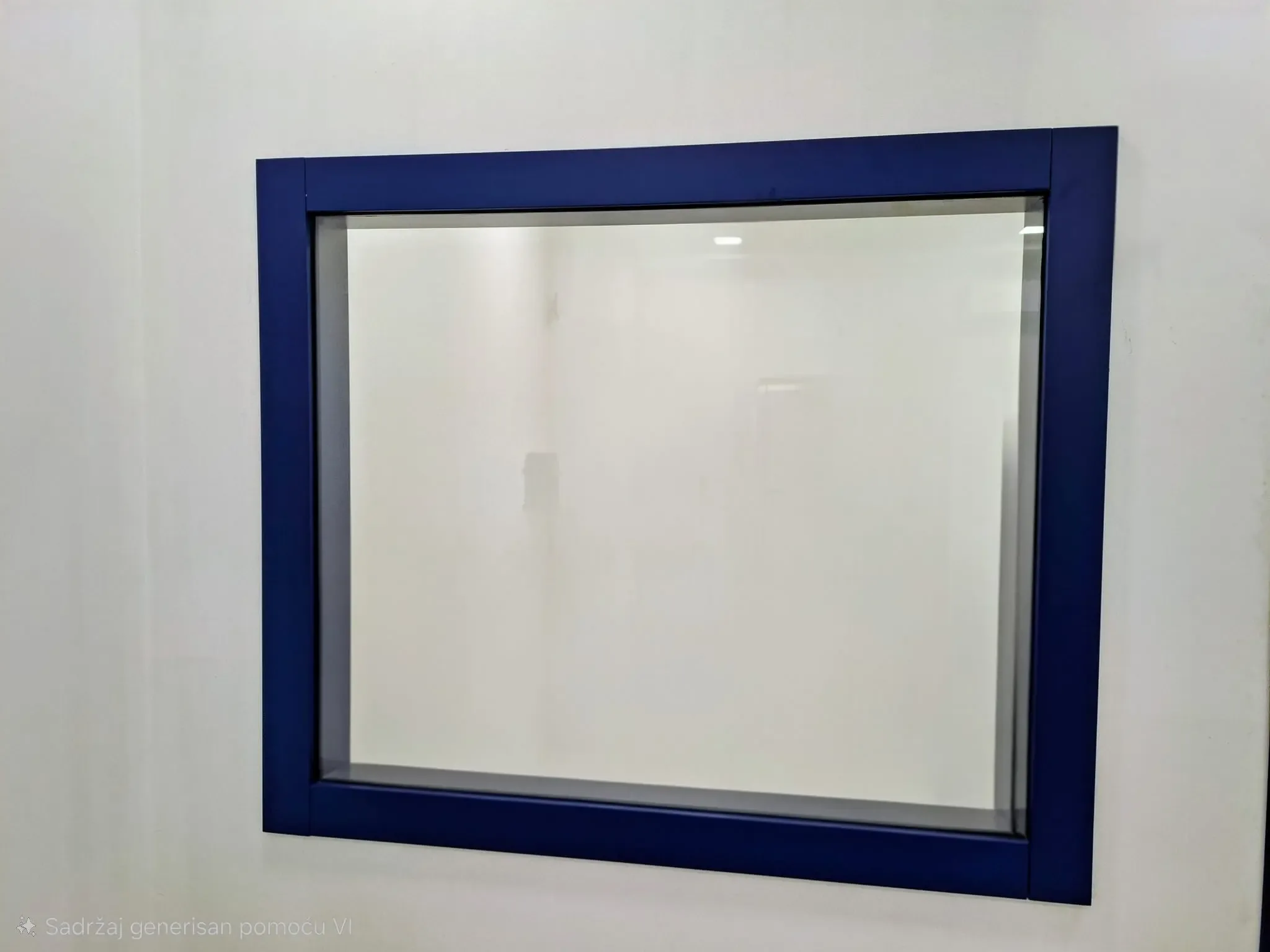

Protective lead glass in a dark blue frame set into a wall

Lead sheet, plates and bricks

Thanks to its extreme density, lead offers the highest level of protection at the smallest material thickness. Our range covers every need — from thin sheet for lining walls to massive plates for bunkers.

  • Lead sheetThicknesses of 0.5–2 mm, 1000 mm wide. Supplied in rolls for easier fixing to walls.
  • Plates and bricksFor high radiation levels. Profiles: starting, intermediate and closing, for a perfect gap-free fit.

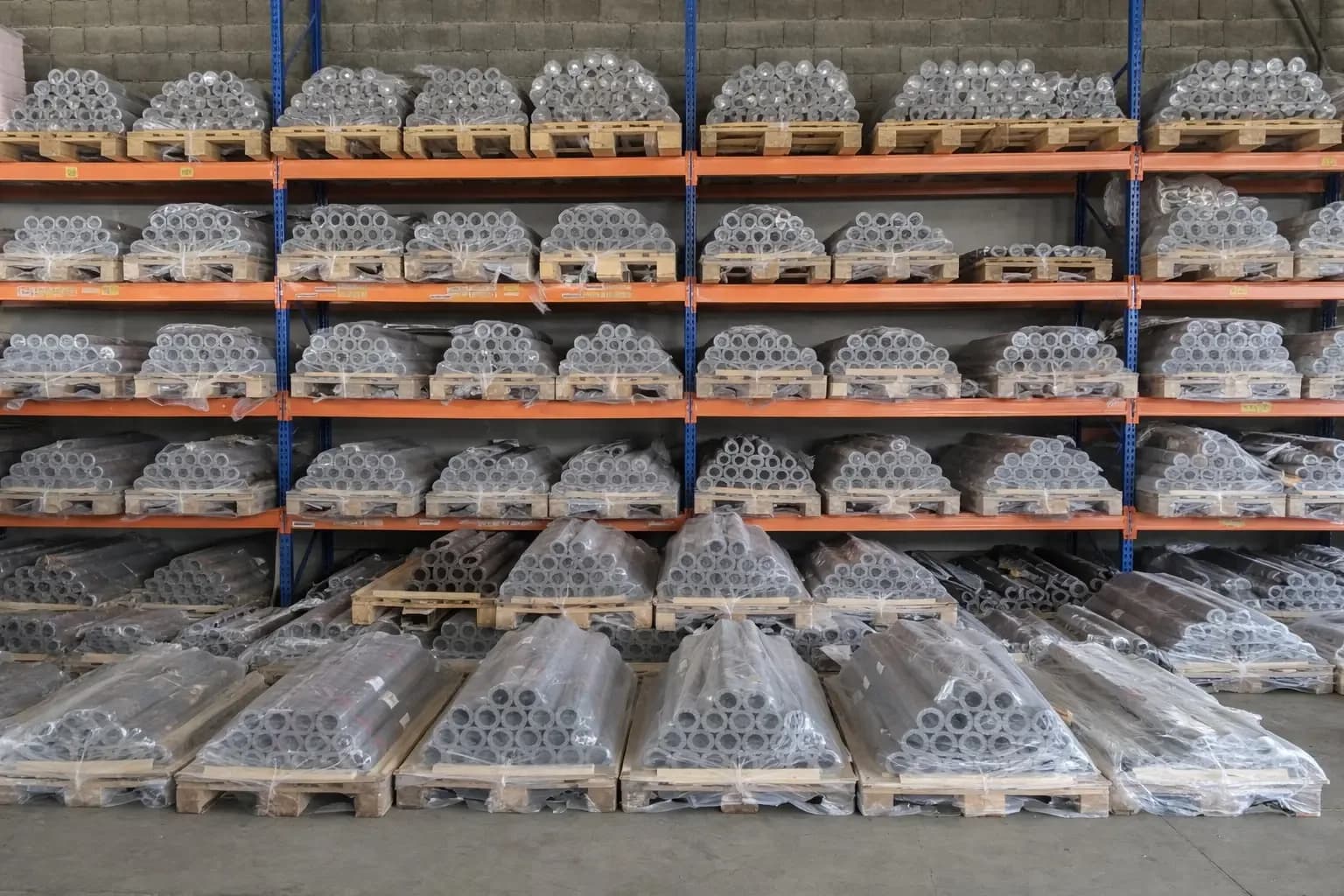

Rolls and packs of lead sheet stacked on racking and pallets in a warehouse

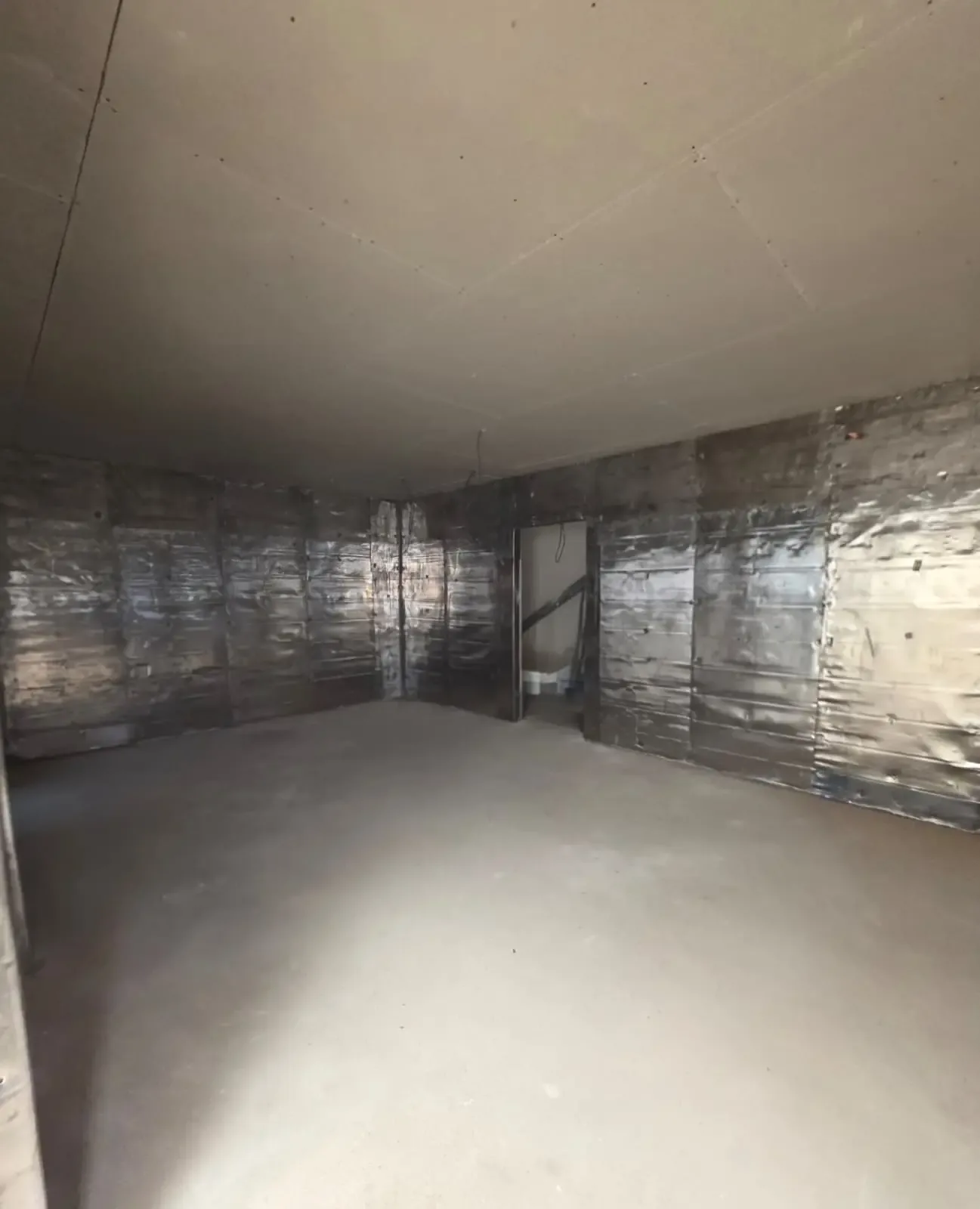

A room with walls lined in lead sheet while the shielding is being installed

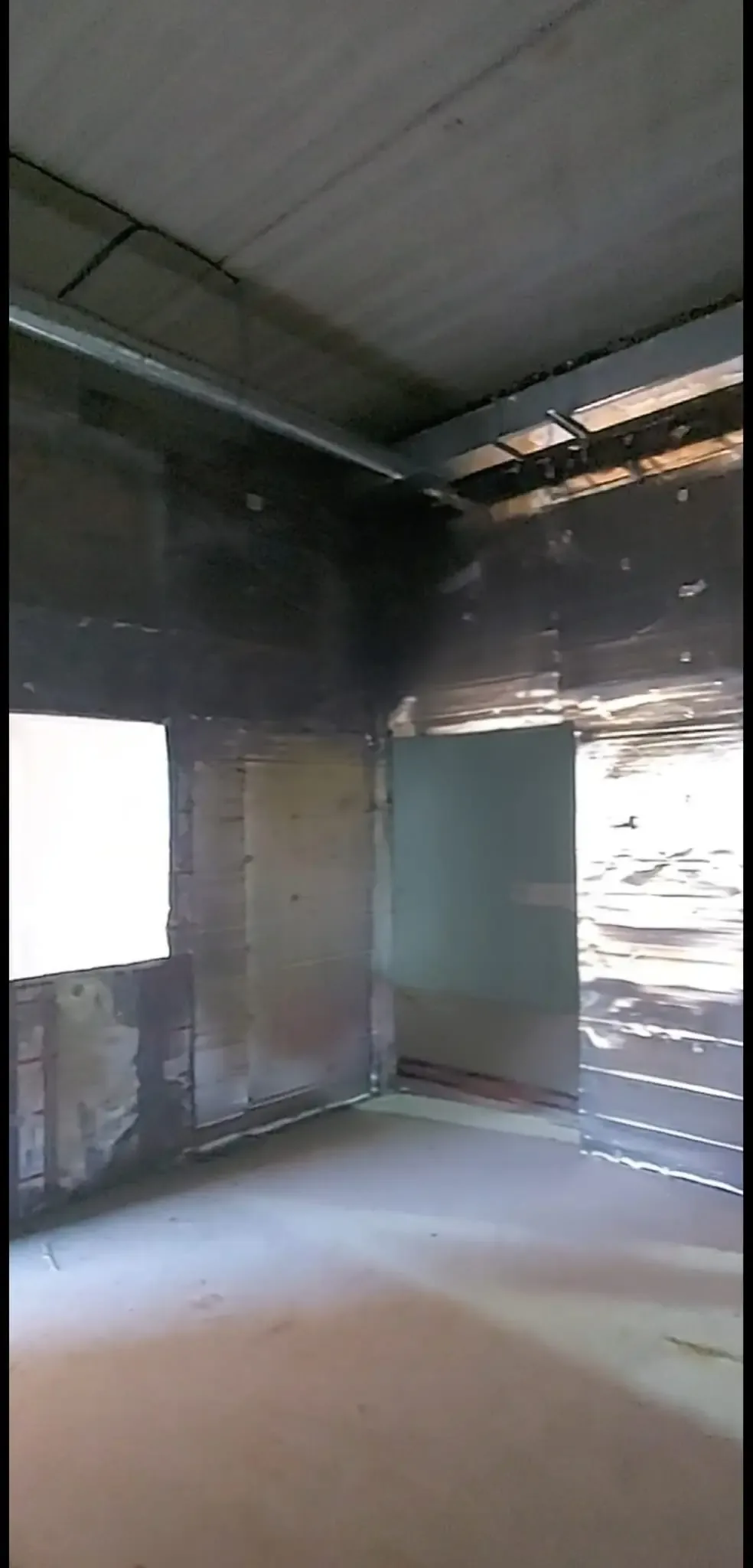

Lead sheet fixed to the walls of a room under construction

Protective lead screens

Our lead screens are not simply a barrier but a complete protection system. Mobile and fixed versions are designed to give dependable radiation protection and maximum practicality in use.

  • ScreensModular screens of lead glass, steel structure and lead infill, adaptable to different spaces.
  • ProtectionA complete protection system that eliminates the passage of radiation through surfaces and joints.
  • ApplicationIdeal for medical and industrial spaces where dependable, controlled protection is required.

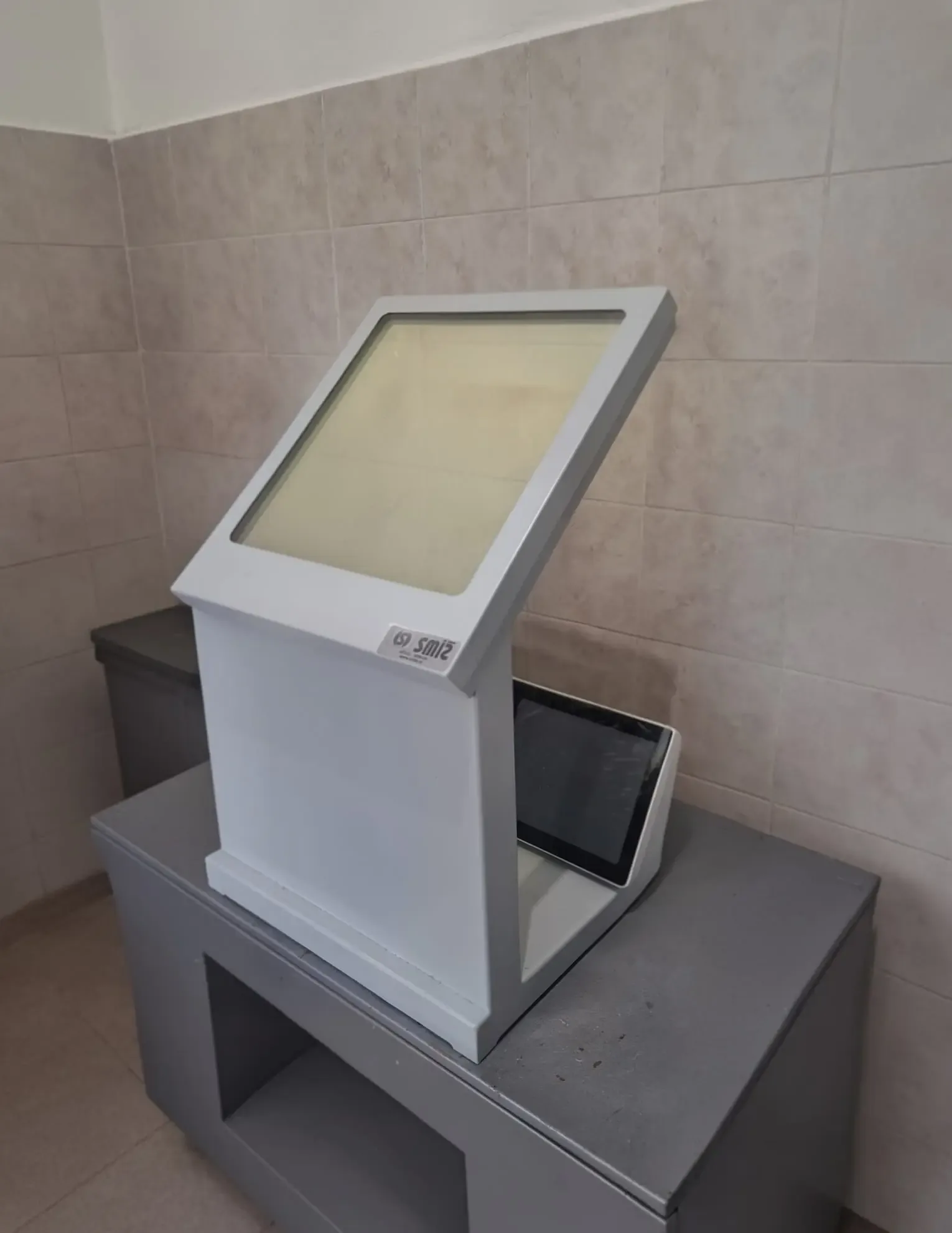

A protective screen with lead glass mounted on a worktop

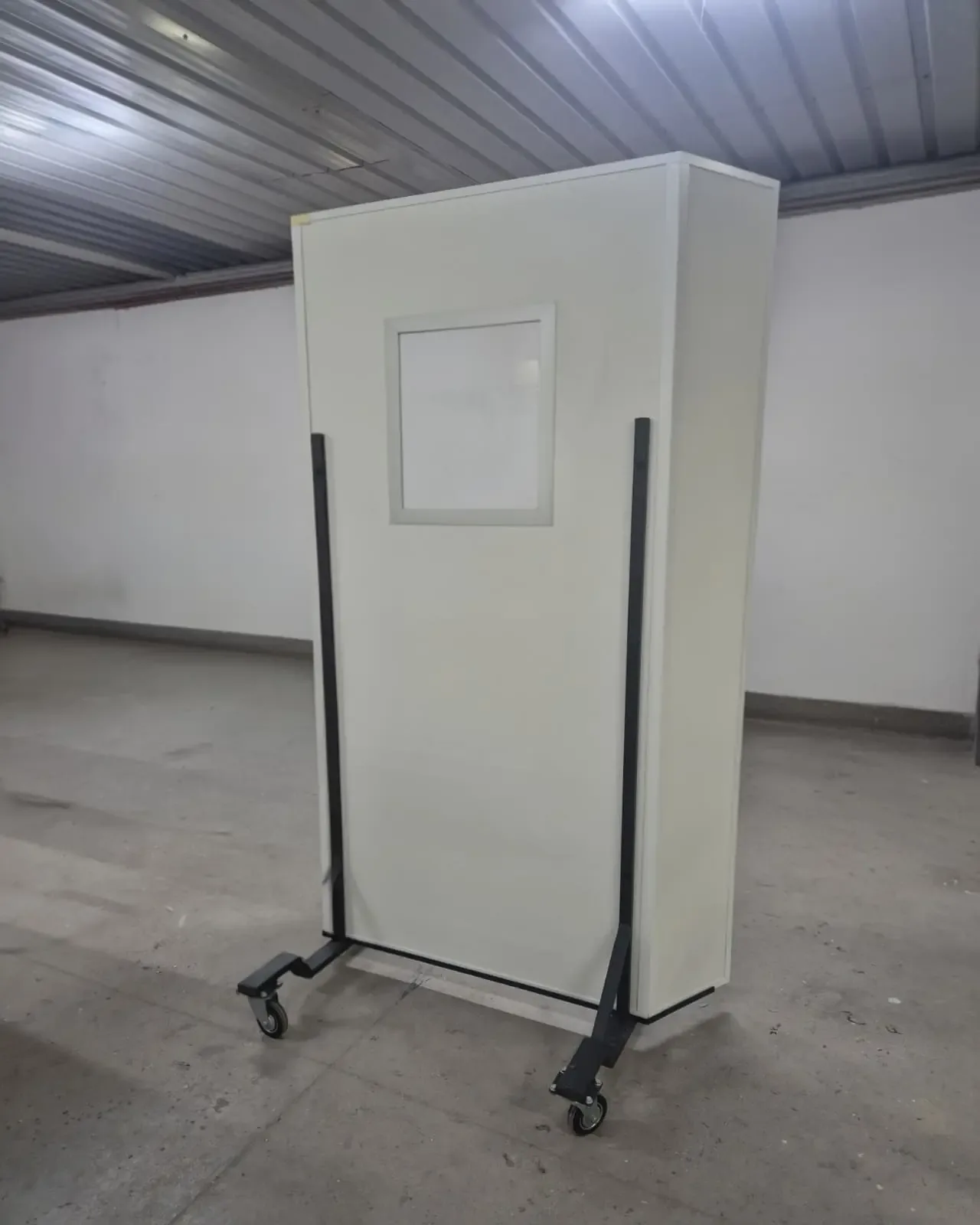

A mobile protective screen on castors with lead glass, in a production hall

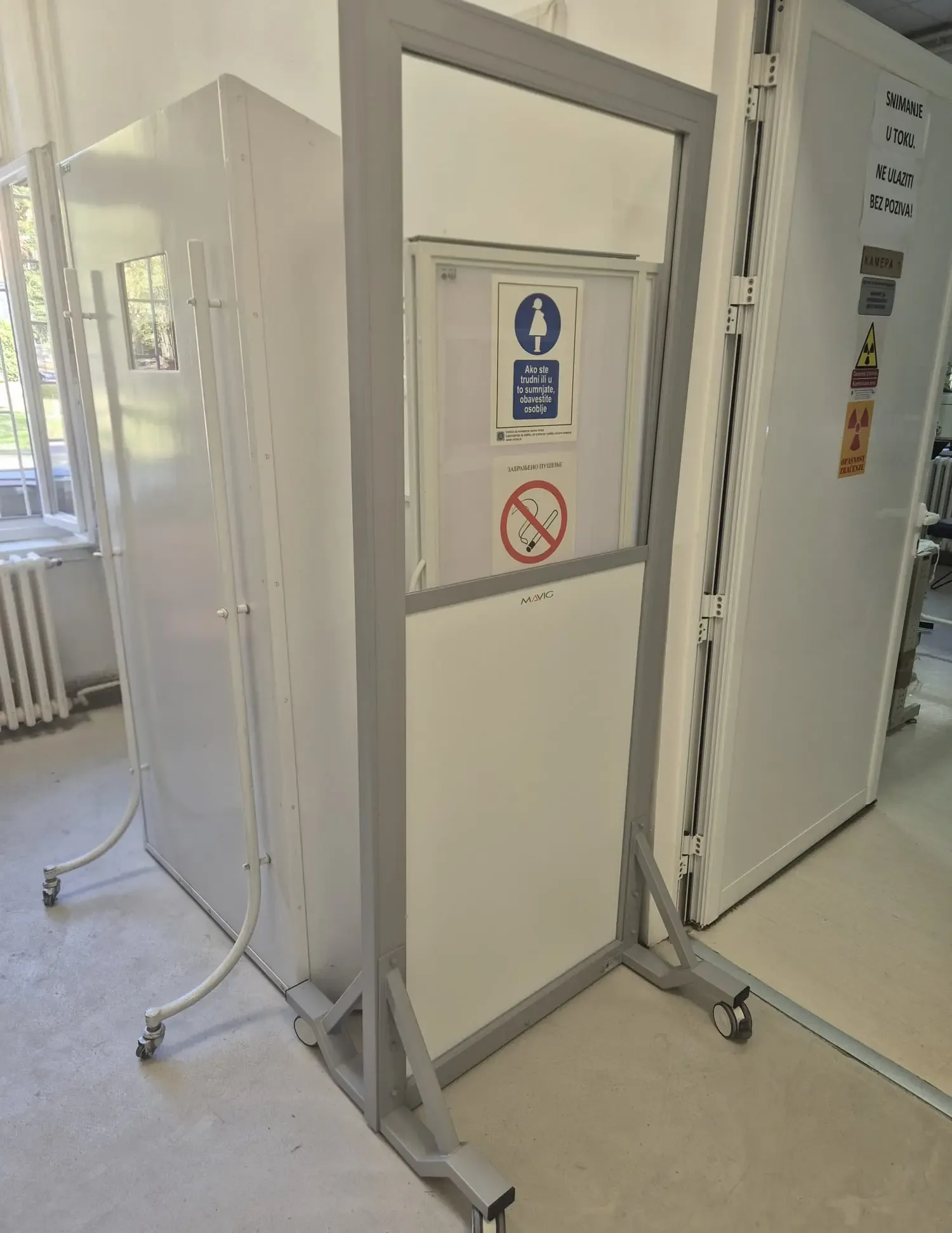

A mobile protective screen with a large lead glass pane and safety markings

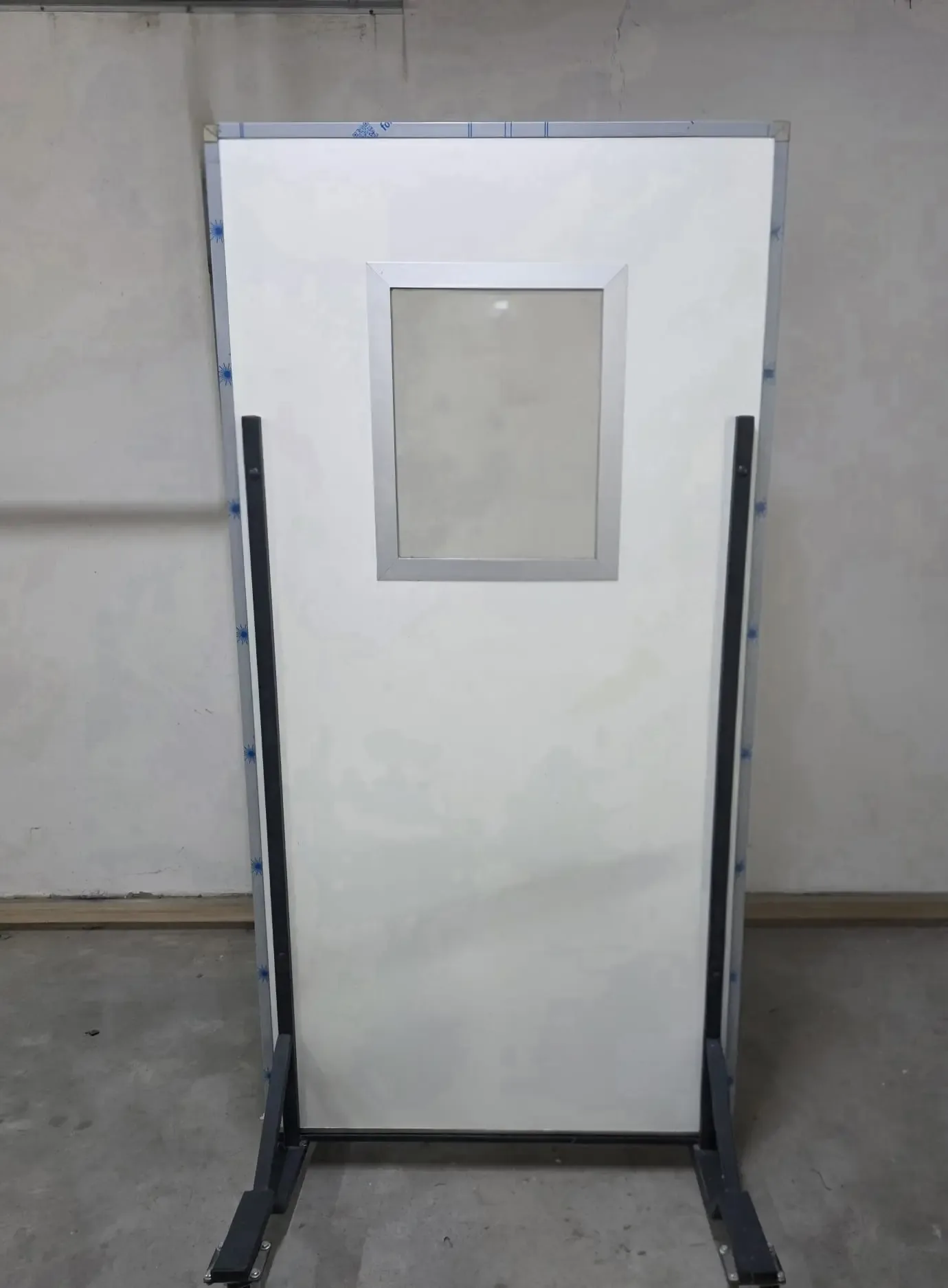

A mobile protective screen on castors with a smaller lead glass pane

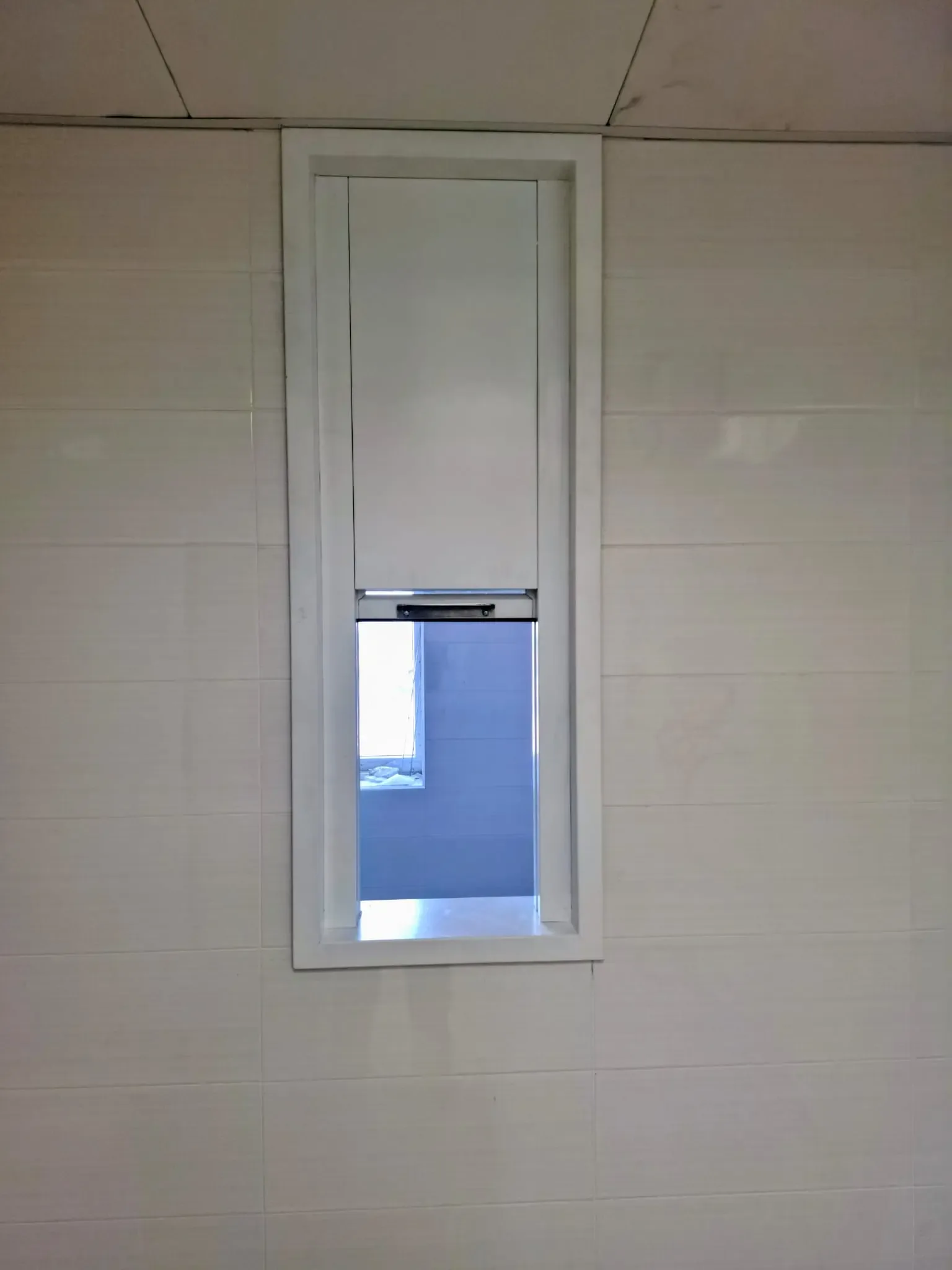

A narrow protective lead window set into a wall clad in ceramic tiles
